AID – Reader Systems

AID multiSpot

The multifunctional imaging device from AID

ELISPOT READER AND AUTOMATED MICROSCOPE COMBINED

The AID multiSpot fulfills all needs in a modern immunology lab.

Equipped with a combined EliSpot/FluoroSpot module for counting and interpreting enzymatic as well as fluorescent EliSpot assays this device also comes with an automated microscope.

The stage handles 96- and 384-well plates, up to 4 conventional slides or classical Terasaki plates.

The software is adapted to EliSpot/ FluoroSpot assays, HEp-2 screening, Cell Counting, HLA-screening and many more applications.

Characteristics:
  • Enzymatic and fluorescence analysis of 96 and 384-well plates; up to 4 conventional slides or Terasaki plates
  • “FluoroAID” image overlay technology
  • Up to 3 fluorescence filters on board
  • 4x, 10x and 20x objectives on a software controlled objective changer
  • Evenly spread, long life LED ring and LED fluorescence illumination (optional)
  • Controlled by a high-end PC
  • Data export to Excel / CSV, PowerPoint, Word, PDF, LIMS, .txt-files

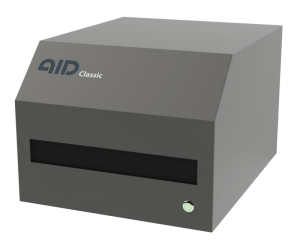

AID Classic

The basic AID Reader System for colorimetric assays in 96- and 384-well plate formats

MOST USED ELISPOT READER FOR ENZYMATIC ASSAYS

This is the classic AID EliSpot Reader type. The device is fast, efficient, user-friendly and has become one of the most successful EliSpot Reader Systems on the market.

The AID Classic interprets any type of 96- and 384-well plates, including all brands of membrane type plates, ELISA-style plates and low volume plates.

It simultaneously takes high resolution images, auto-centers the well, counts/analyzes plates and exports data in various formats.

Characteristics:
  • Enzymatic analysis of 96 and 384-well plates
  • Less than 3 minutes for complete interpretation of an enzymatic 96-well plate (reading – counting – analyzing – data-export)
  • High resolution images with a firewire connected digital camera
  • Evenly spread, long life LED ring and LED fluorescence illumination (optional)
  • Controlled by a high-end PC
  • Data export to Excel / CSV, PowerPoint, Word, PDF, LIMS, .txt-files

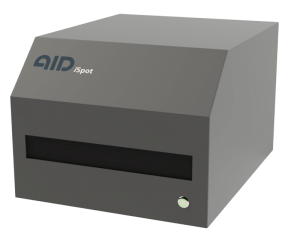

AID iSpot

The basic AID Reader System for colorimetric assays in 96- and 384-well plate- and fluorescent assays in 96-well plate format

THE BASIC ELISPOT/FLUOROSPOT READER

The AID iSpot is the most successful EliSpot/FluoroSpot Reader. The AID iSpot allows analyzing both: Enzymatic and fluorescent (FluoroSpot) based EliSpot assays.

Besides the outstanding functionality of the AID Classic, the AID iSpot allows to analyze 1-, 2- or even 3-color FluoroSpot assays. A simple “one-click switch” between enzymatic and fluorescent mode, without the need of hardware changes, is enough to switch from one mode to another.

The “FluoroAID” image overlay technology permits exact detection of cells secreting multiple cytokines.

Count results and all other parameters can be exported in various formats.

Characteristics:
  • Enzymatic and fluorescent analysis of 96- and 384-well plates in one system
  • Less than 3 minutes for complete interpretation of an enzymatic 96-well plate
  • Less than 10 minutes for complete interpretation of a 2-color FluoroSpot plate
  • “FluoroAID” image overlay technology
  • Up to 3 fluorescence filters on board
  • Evenly spread, long life LED ring and LED fluorescence illumination (optional)
  • Controlled by a high-end PC
  • Data export to Excel / CSV, PowerPoint, Word, PDF, LIMS, .txt-files

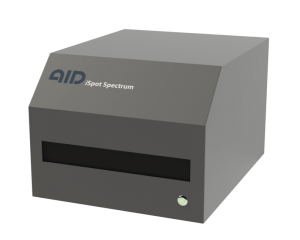

AID iSpot Spectrum

The high-end AID Reader System for colorimetric assays in 96- and 384-well plate- and fluorescent assays in 96-well plate format

THE HIGH RESOLUTION ELISPOT/FLUOROSPOT READER

The AID iSpot Spectrum is the newest generation of the successful AID iSpot.

The AID iSpot Spectrum is equipped with a 7&1 filter wheel, which allows for a customized selection of up to 7 individual narrow band, hard-coated fluorescent filters, whilst still allowing for our “one-click switch” to analyze enzymatic EliSpot assays on 96- and 384-well plates.

The insertion of a high resolution camera provides well images of fluorescence optimized quality.

The “FluoroAID” image overlay technology permits exact detection of cells secreting multiple cytokines. Count results and all other parameters can be exported in various formats.

Characteristics:
  • Enzymatic and fluorescent analysis of 96- and 384-well plates in one system
  • Less than 3 minutes for complete interpretation of an enzymatic 96-well plate
  • Less than 10 minutes for complete interpretation of a 2-color FluoroSpot plate
  • “FluoroAID” image overlay technology
  • Up to 7 separate fluorescent filters on board
  • Evenly spread, long life LED ring and LED fluorescence illumination (optional)
  • Data export to Excel / CSV, PowerPoint, Word, PDF, LIMS, .txt-files

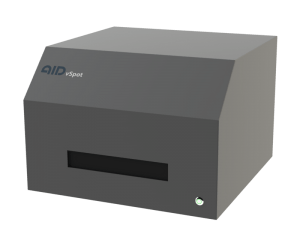

AID vSpot

The versatile AID Reader System for colorimetric assays in various plate formats

HIGH RESOLUTION IMAGE ANALYZER FOR VARIOUS PLATE FORMATS

The AID vSpot extends the functionality of the successful AID Classic with full range plate compatibility.

Due to a genuine optical zoom, versatile stage settings and unique software features this reader is not restricted to the analysis of 96-well plate formats. It also reads 6-, 12-, 24- and 48-well plates.

The AID vSpot analyzes a variety of different assay types including EliSpot, Viral Plaque Assays, Neutralization Assays and Colony Counting.



Characteristics:
  • Enzymatic analysis of 6-, 12-, 24-, 48-, 96-well plates
  • High resolution images via firewire connected digital camera
  • Evenly spread, long life LED light source
  • Controlled by a high-end PC
  • Data export to Excel, CSV, PowerPoint, PDF, LIMS, .txt-files

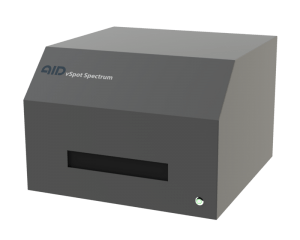

AID vSpot Spectrum

The versatile, high-end AID Reader System for colorimetric assays in various plate formats and fluorescent assays in 96-well plate format

HIGH RESOLUTION IMAGE ANALYZER FOR VARIOUS PLATE FORMATS

The AID vSpot Spectrum is the high-end EliSpot/FluoroSpot device from AID. It combines different plate formats with the capability of reading fluorescence assays.

The AID vSpot Spectrum can handle a variety of different assay types including Viral Plaque Assays, Neutralization Assays and Colony Counting.

Due to a genuine optical zoom, versatile stage settings and unique software features this reader is not restricted to the analysis of 96-well plate formats. It also reads 6-, 12-, 24-, 48- and 384-well plates.

The AID vSpot Spectrum is equipped with an 7&1 position filter wheel, which allows for a customized selection of up to 7 individual narrow band, hard coated fluorescent filters, whilst still allowing for our “one-click switch” to perform enzymatic analysis on different plate formats.



Characteristics:
  • Enzymatic analysis of 6-, 12-, 24-, 48-, 96- and 384-well plates and fluorescent analysis of 96- and 384-well plates
  • “FluoroAID” image overlay technology
  • Up to 7 separate fluorescent filters on board
  • 2 digital firewire cameras, optimized for fluorescence imaging
  • Evenly spread, long life LED ring and LED fluorescence illumination (optional)
  • Controlled by a high-end PC
  • Data export to Excel / CSV, PowerPoint, Word, PDF, LIMS, .txt-files
