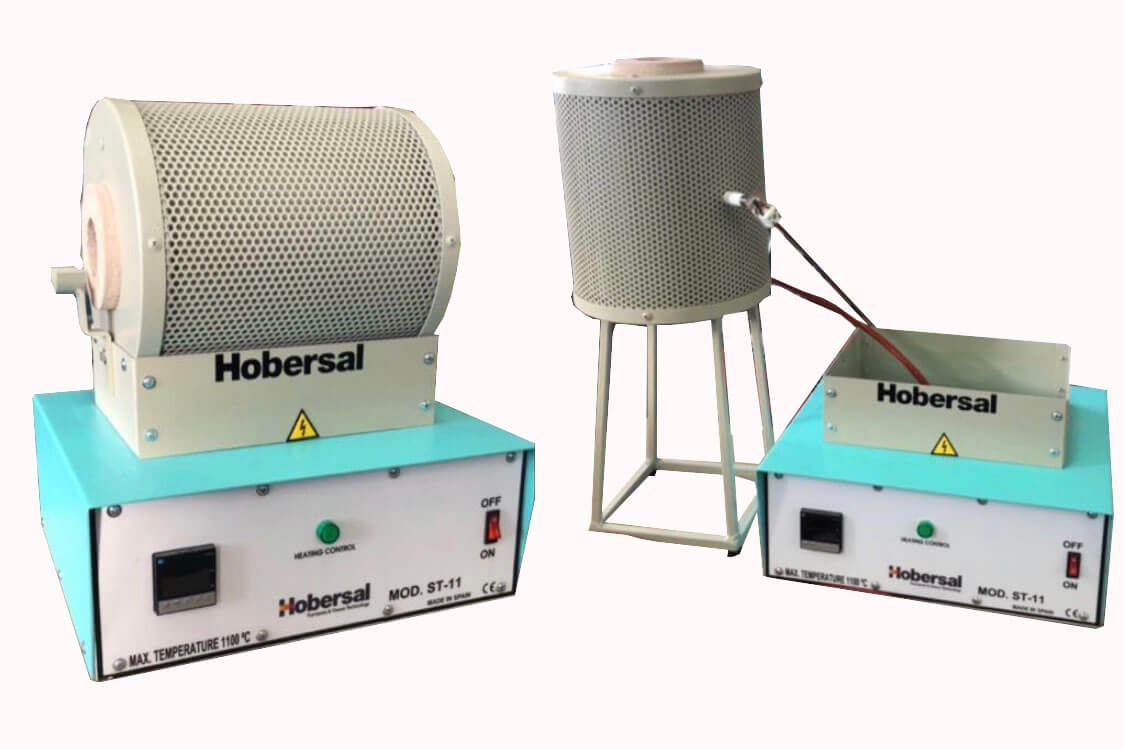

ST Series
ST series are tube furnaces with a new modern, compact and versatile design with maximum temperatures from 1200ºC and 1300ºC, Kanthal heating elements and high quality and high density thermal insulation that allow high heating rates and low energy consumption
Kanthal heating elements surrounding the tube on 6 sides
ST tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures of 1200ºC and 1300ºC
- Diameters from 20 mm and 120 mm
- 200, 400, 600, 800 and 1000mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for low noise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type K (1200ºC) and S (1300ºC)

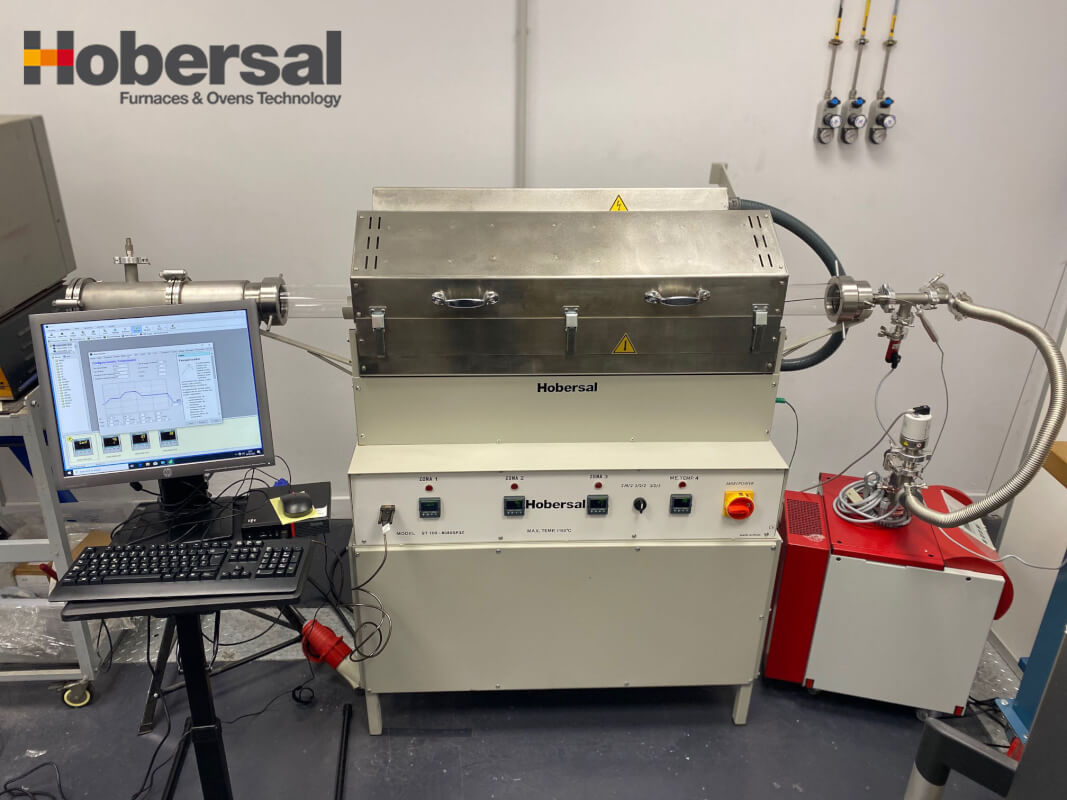

ST SP Series
Hobersal’s ST SP design split tubular furnace, versatile and compact up to 1200ºC and 1300ºC
The ST SP tube furnace series are split tube furnaces with a new modern, compact and versatile design with maximum temperatures from 1200ºC and 1300ºC, Kanthal heating elements surrounding the tube on 6 sides and high quality and high density thermal insulation that allow high heating rates and low energy consumption
ST SP tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures of 1200ºC and 1300ºC
- Diameters from 20 mm and 120 mm
- 200, 400, 600, 800 and 1000mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Kanthal Heating elements on support tubes provide for free radiation
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for low noise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type K (1200ºC) and S (1300ºC)
- Fan in control panel to protect the electrical parts

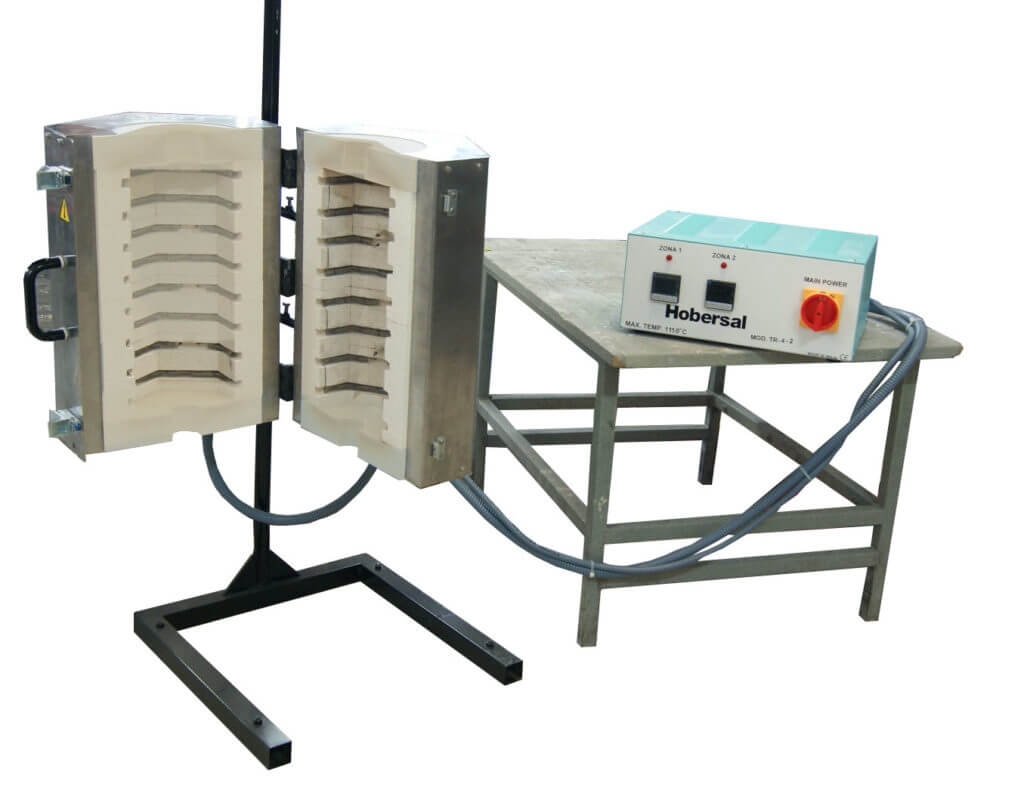

TR Series
Vertical Split tube furnaces up to 1300ºC
The TR tube furnace series are split and vertical tube furnaces with a new modern, compact and versatile design with maximum temperatures from 1200ºC and 1300ºC, Kanthal heating elements surrounding the tube on 6 sides and high quality and high density thermal insulation that allow high heating rates and low energy consumption
TR tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures of 1200ºC and 1300ºC
- Diameters from 20 mm and 120 mm
- 200, 400, 600, 800 and 1000mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Kanthal Heating elements on support tubes provide for free radiation
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for low noise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type K (1200ºC) and S (1300ºC)
- Fan in control panel to protect the electrical parts

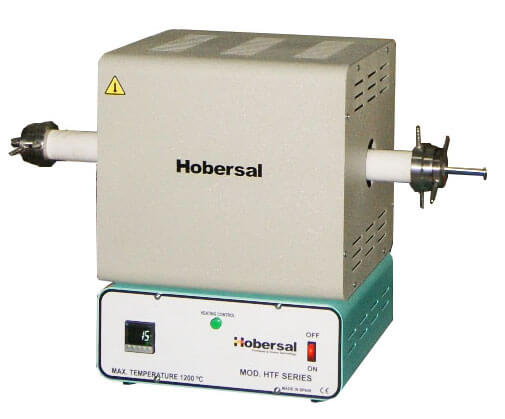

HTF Series
Hobersal’s new HTF design tubular furnace, versatile and compact up to 1200ºC and 1300ºC
The new HTF series are tube furnaces with a new modern, compact and versatile design with maximum temperatures from 1200ºC and 1300ºC, Kanthal heating elements and high quality and high density thermal insulation that allow high heating rates and low energy consumption.
In addition, thanks to the new design, it is possible to work in a vertical operation adding a vertical operation kit.
HTF tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures of 1200ºC and 1300ºC
- Diameters from 20 mm and 120 mm
- 200, 400, 600, 800 and 1000mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type K (1200ºC) and S (1300ºC)
- Fan in control panel to protect the electrical parts
HTF SP Series
Hobersal’s new HTF SP design split tubular furnace, versatile and compact up to 1200ºC and 1300ºC
The new HTF SP series are split tube furnaces with a new modern, compact and versatile design with maximum temperatures from 1200ºC and 1300ºC, Kanthal Heating elements on support tubes provide for free radiation and high quality and high density thermal insulation that allow high heating rates and low energy consumption.
In addition, thanks to the new design, it is possible to work in a vertical operation adding a vertical operation kit.
HTF SP tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures of 1200ºC and 1300ºC
- Diameters from 20 mm and 120 mm
- 200, 400, 600, 800 and 1000mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type K (1200ºC) and S (1300ºC)
- Fan in control panel to protect the electrical parts
HTF SC Series
Hobersal’s new HTF SC design tubular furnace, versatile and compact up to 1600ºC heated by Kanthal SiC
The new HTF SC series are tube furnaces with a new modern, compact and versatile design with maximum temperatures up to 1600ºC, heated by Silicon Carbide (SiC) Kanthal heating elements and high quality and high density thermal insulation that allow high heating rates and low energy consumption
In addition, thanks to the new design, it is possible to work in a vertical operation adding a vertical operation kit.
HTF SC high temperature tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures up to1600ºC
- Diameters from 20 mm and 120 mm
- 300, 450, 600 and 800 mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Silicon Carbide heating elements (Kanthal SiC rods)
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type S (1600ºC)
- Fan in control panel to protect the electrical parts
HTF SC SP Series
Hobersal’s new HTF SP SC design split tubular furnace, versatile and compact up to 1600ºC heated by Kanthal SiC
The new HTF SP SC series are tube furnaces with a new modern, compact and versatile design with maximum temperatures up to 1600ºC, heated by Silicon Carbide (SiC) Kanthal heating elements and high quality and high density thermal insulation that allow high heating rates and low energy consumption.
In addition, thanks to the new design, it is possible to work in a vertical operation adding a vertical operation kit.
HTF SP SC high temperature tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures up to1600ºC
- Diameters from 20 mm and 120 mm
- 300, 450, 600 and 800 mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Silicon Carbide heating elements (Kanthal SiC rods)
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type S (1600ºC)
- Fan in control panel to protect the electrical parts
ST Series
Hobersal’s ST16 ST18 and ST19 design tubular furnace, versatile and compact up to 1600ºC heated by Kanthal SiC and 1650ºC, 1800ºC and 1900ºC (MoSi2)
The ST16, ST18 and ST19 series are tube furnaces with a new modern, compact and versatile design with maximum temperatures up to 1600ºC, heated by Silicon Carbide (SiC) Kanthal heating elements and modibdenum disilicide (MoSi2) Kanthal Super 1800 and 1900 and high quality and high density thermal insulation that allow high heating rates and low energy consumption.
ST16, ST18 and ST19 high temperature tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures up to 1600ºC, 1650ºC, 1800ºC and 1900ºC
- Diameters from 20 mm and 120 mm
- 300, 450, 600 and 800 mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Silicon Carbide heating elements (Kanthal SiC rods)
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type S (1600ºC) Type B (1900ºC)
- Fan in control panel to protect the electrical parts

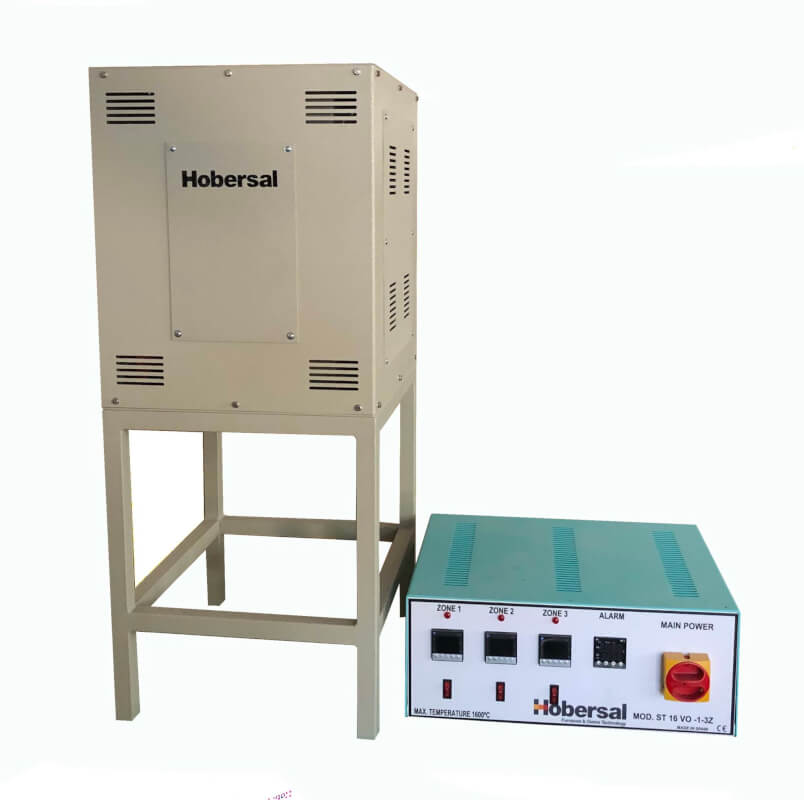

ST-V Series
Hobersal’s ST16 ST18 and ST19 vertical tubular furnace, versatile and compact up to 1600ºC heated by Kanthal SiC and 1650ºC, 1800ºC and 1900ºC (MoSi2)
The ST16, ST18 and ST19 series are tube furnaces with a new modern, compact and versatile design with maximum temperatures up to 1600ºC, heated by Silicon Carbide (SiC) Kanthal heating elements and modibdenum disilicide (MoSi2) Kanthal Super 1800 and 1900 and high quality and high density thermal insulation that allow high heating rates and low energy consumption.
ST16, ST18 and ST19 high temperature tube furnaces let work in oxidizing atmosphere, inert or reduced atmosphere and vacuum with our gas and vacuum packages.
Standard Equipment
- Maximum temperatures up to 1600ºC, 1650ºC, 1800ºC and 1900ºC
- Diameters from 20 mm and 120 mm
- 300, 450, 600 and 800 mm heating zones
- Heated zones: 1, 2, 3 and 5 independent zones
- Silicon Carbide heating elements (Kanthal SiC rods)
- Ramp programmer up to 64 segments
- Heating pilot indicator light
- Solid state relays provide for lownoise operation
- High density insulation for energy savings
- Air chamber to prevent surface overheating
- Fast heating and cooling
- Thermocouples type S (1600ºC) Type B (1900ºC)
- Fan in control panel to protect the electrical parts
